Vention AKGH0 Hdmi Network Cable Extender 50m

Vention AKGH0 HDMI Network Cable Extender 50m is designed to extend HDMI signals over long distances using network cables (typically Cat.5e/6), enabling high-quality video and audio transmission without significant loss in signal quality.

Vention HDMI Network Cable Extender allows you to connect devices such as TVs, projectors, or monitors to HDMI sources like computers, Blu-ray players, or gaming consoles over distances up to 50 meters.

Vention HDMI Network Cable Extender 50M Specificatison;

• Model: Vention AKGH0 HDMI Network Cable Extender

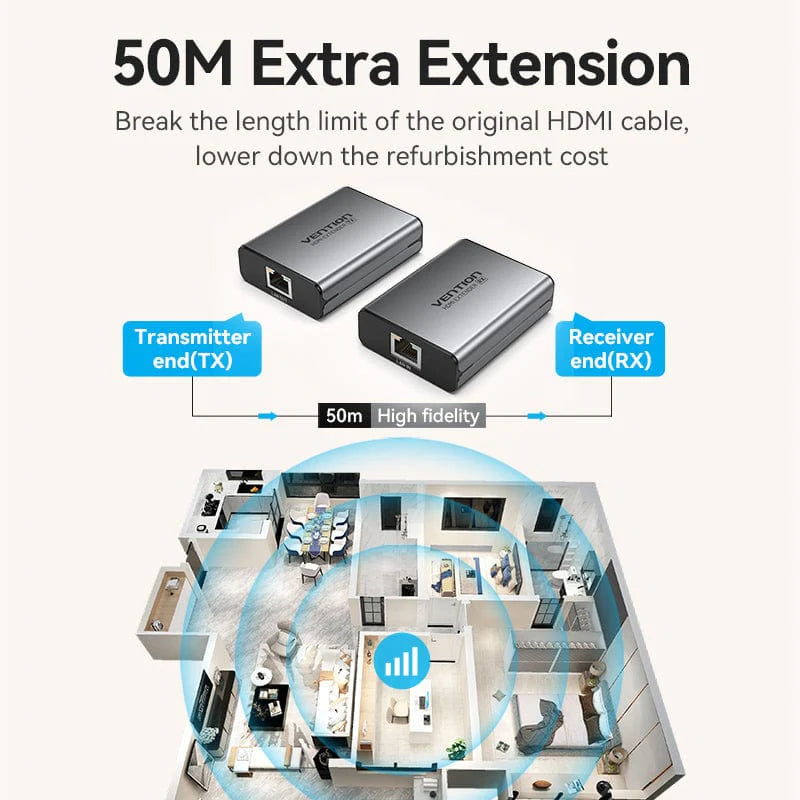

• Transmission Distance: Up to 50 meters (164 feet) using Cat.6 cable; up to 40 meters (131 feet) using Cat.5e cable.

Video & Audio:

• Maximum Resolution: 1080p Full HD (1920×1080) at 60Hz
• HDMI Version: HDMI 1.4
• Supported Audio Formats: LPCM, DTS, Dolby Digital
• Video Bandwidth: 10.2 Gbps
• HDCP Support: HDCP 1.4 for content protection.

Transmission Medium:

• Transmission Medium: Cat.5e/6 UTP or STP Ethernet cable
• Cable Requirements:
  • Cat.6 cable for up to 50 meters.
  • Cat.5e cable for up to 40 meters.

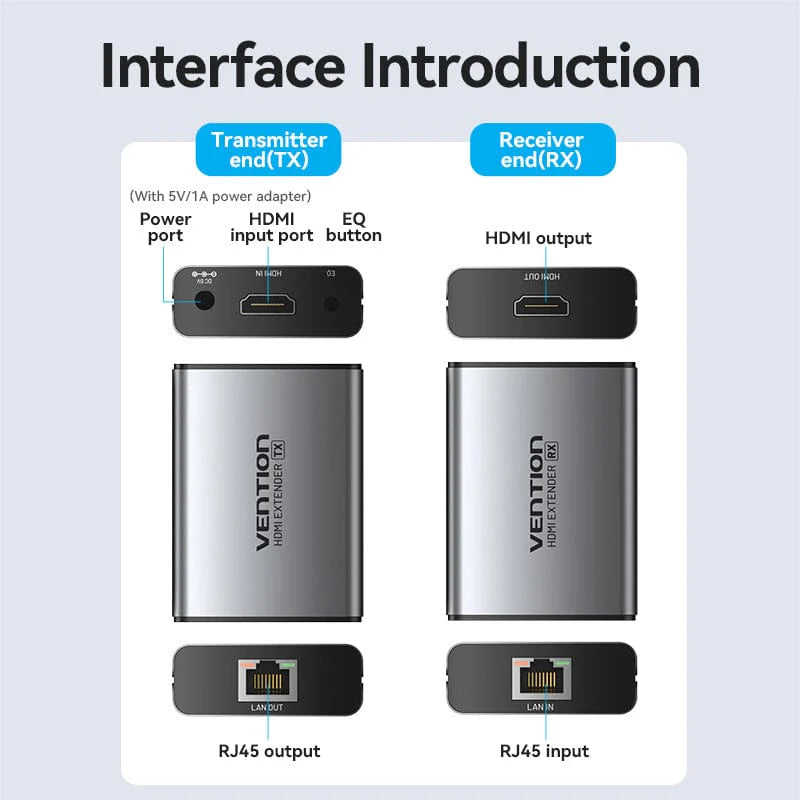

Interface:

• HDMI Input: 1 x HDMI Type-A (on the transmitter)
• HDMI Output: 1 x HDMI Type-A (on the receiver)
• RJ45 Ports: 1 x RJ45 (on both the transmitter and receiver for network cable transmission)

Power:

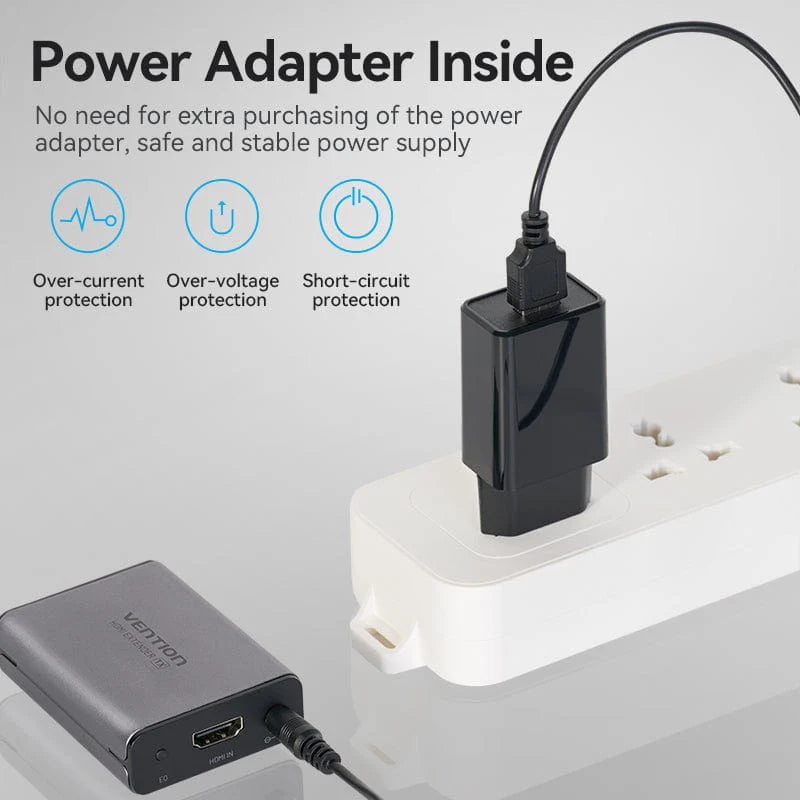

• Power Supply: External 5V/1A power adapters for both transmitter and receiver units (included).

Features:

• Plug-and-Play: No driver or software installation required.
• Indicator Lights: LED lights on both units to indicate power and signal status.
• Compact Design: Small and lightweight for easy installation.

Environmental:

• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Operating Humidity: 10% to 85% RH (non-condensing)

Physical Dimensions:

• Transmitter Size: Approx. 55mm x 55mm x 20mm
